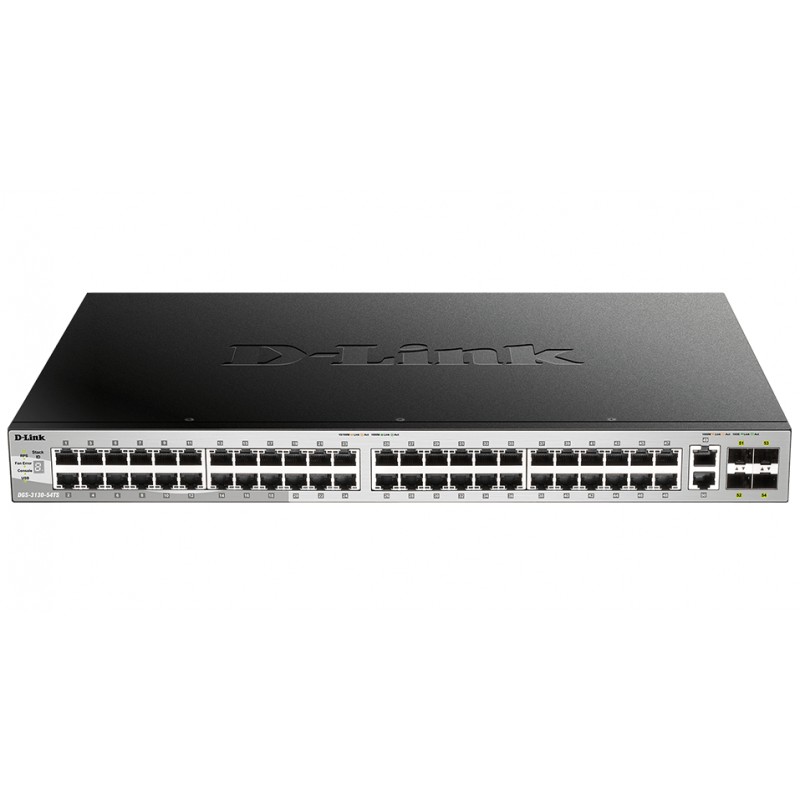

Switch D-link L3 Gbe 48xgbe 2x10g 4x10g Sfp+ Dgs-3130-54ts

SKU: DGS-3130-54TS

Switch D-Link Gestionado DGS-3130-54TS, L3 GbE, 48xGbE , 2x10G, 4x10G SFP+
Optional Redundant Power Supply
• DPS-500A
• DPS-500DC

Console Port
• 10/100/1000BASE-T RJ-45 port for out-of-band CLI management

Management Port
• 10/100/1000BASE-T RJ-45 port for out-of-band IP management

Stacking Ports
•4
Stacking Cost
•1
USB Ports
• 1 x USB 2.0 Type A port

Performance

Switching Capacity
• 216 Gbps
64-Byte Packet Forwarding Rate
• 161 Mpps
Packet Buffer Memory
• 4 MB

Software Features
Stackability
• Physical stacking
- Stacking Lite
- Up to 9 units per stack or up to 12 stacking cost per stack1
- Up to 80 Gbps stacking band
- Ring/chain topology support

L2 Features
• MAC Address Table: 16K (16,384) entries
• Flow Control
- 802.3x Flow Control
- HOL Blocking Prevention
• Jumbo Frames up to 9 Kbytes
• 802.1AX/802.3ad Link Aggregation
- Max. 32 groups per device, 8 ports per group

L2 Multicasting
• IGMP Snooping
- IGMP v1/v2/v3 Snooping
- Supports 1024 IGMP groups
- Host-based IGMP Snooping Fast Leave
- Supports 128 static IGMP groups
- Per VLAN IGMP Snooping
- Data Driven Learning
- IGMP Snooping Querier
- Report Suppression

L3 Multicasting
• IGMP v1/v2/v3

VLAN
• VLAN Group
- Max. 4K VLAN groups
- Max. 1~4094 VIDs
• GVRP
- Max. 4K dynamic VLAN groups
• DoubleVLAN(Q-in-Q)
- Port-based Q-in-Q
- Selective Q-in-Q

QoS (Quality of Service)
• 802.1p
• 8 queues per port
• Queue Handling
- Strict Priority
- Weighted Round Robin (WRR)
- Strict+WRR
- Weighted Deficit Round Robin (WDRR)
• Policy Map
- Remark 802.1p priority
- Remark IP precedence/DSCP
- Time based QoS
• Congestion Control
- Weighted Random Early Detection (WRED)
- Simple Random Early Detection (SRED)

Access Control List (ACL)
• ACL based on
- 802.1p priority
- VID
- MAC address
- Ether Type
- LLC
- VLAN
- IP address
- IP preference/ToS
- DSCP mask
- Protocol type
- TCP/UDP port number
- IPv6TrafficClass
- IPv6 Flow Label

Security
• Port Security
- Supports up to 64 MAC addresses per port
• Broadcast/Multicast/Unicast Storm Control
• D-Link Safeguard Engine
• DHCP Server Screening
• IP Source Guard
• DHCP Snooping

AAA
• GuestVLAN
• 802.1X Authentication
- Supports port/host-based access control
- Identity-driven Policy Assignment
- DynamicVLANAssignment
• Privilege Level for Management Access
• Trusted Host

Green Features
• Energy-Efficient Ethernet (EEE)
• Power saving by link status
• Power saving by cable length

OAM (Operations, Administration and Maintenance)
• Cable Diagnostics
• 802.3ah Ethernet Link OAM
• D-Link Unidirectional Link Detection (DULD)

Management
• Web-based GUI
• Support IPv4/IPv6 acces
• Support SSL (https)
• Command Line Interface (CLI)
• Telnet Server for IPv4/IPv6
• Telnet Client for IPv4/IPv6
• TFTP Client for IPv4/IPv6
• DNS Client for IPv4/IPv6
• Secure FTP Server for IPv4/IPv6
• SNMP
• Support v1/v2c/v3
• Support for IPv4/IPv6 access
• SNMP Traps
• System Log for IPv4/IPv6 Syslog
Server

Management
• Web-based GUI
• Command Line Interface (CLI)
• Telnet Server
• Telnet Client
• TFTP Client
• DNS Client
• Secure FTP Server
• ZModem
• SNMP v1/v2c/v3
• SNMP Traps
• System Log
• sFlow
• Multiple images

L3 Features
• IPv4 ARP Entries 2048
- 512 Static ARP
• IPv6 ND Entries:1024
- 128 Static ND Entries

L3 Routing
• Supports 1024 hardware routing entries shared by IPv4/IPv6
- 1 entry consumed by each IPv4 route
- 2 entries consumed by each IPv6 route
• Supports up to 2048 hardware L3 forwarding entries shared by IPv4/ IPv6 4
- 1 entry consumed by each IPv4 route
- 2 entries consumed by each IPv6 route

MIB
• RFC1065, RFC1066, RFC1155, RFC1156, RFC2578 MIB Structure
• RFC1212 Concise MIB Definitions
• RFC1213 MIBII
• RFC1215 MIB Traps Convention
• RFC1493, RFC4188 Bridge MIB
• RFC1157, RFC2571, RFC2572, RFC2573, RFC2574, RFC2575,RFC2576 SNMP MIB
• RFC1442, RFC1901, RFC1902,RFC1903, RFC1904, RFC1905, RFC1906, RFC1907, RFC1908, RFC2578, RFC3418, RFC3636 SNMPv2 MIB
• RFC271, RFC1757, RFC2819 RMON MIB
• RFC2021 RMONv2 MIB

RFC Standard Compliance
• RFC 768 UDP
• RFC 791 IP
• RFC 793 TCP
• RFC 826 ARP
• RFC 3513, 4291, IPv6 Addressing Architecture
• RFC2474, RFC3168, RFC3260 Definition of the DS Field in the IPv4 and IPv6 Headers
• RFC1321, RFC2284, RFC2865, RFC2716, RFC1759, RFC3580, RFC3748 Extensible Authentication Protocol (EAP)
